Logging

The Logging page controls where the virtual site writes its operational log and how much detail that log contains. The available fields change depending on the chosen destination.

Common settings

Two settings always appear at the top of the card, regardless of destination.

Destination

Where the operational log is written. Three destinations are available:

• Standard output: the log is written to the process standard output stream.
• File: the log is written to rotating files in a directory you choose.
• Syslog: the log is forwarded to a syslog collector over the network.

Detail level

How verbose the log is. Selecting a level controls which severities are recorded.

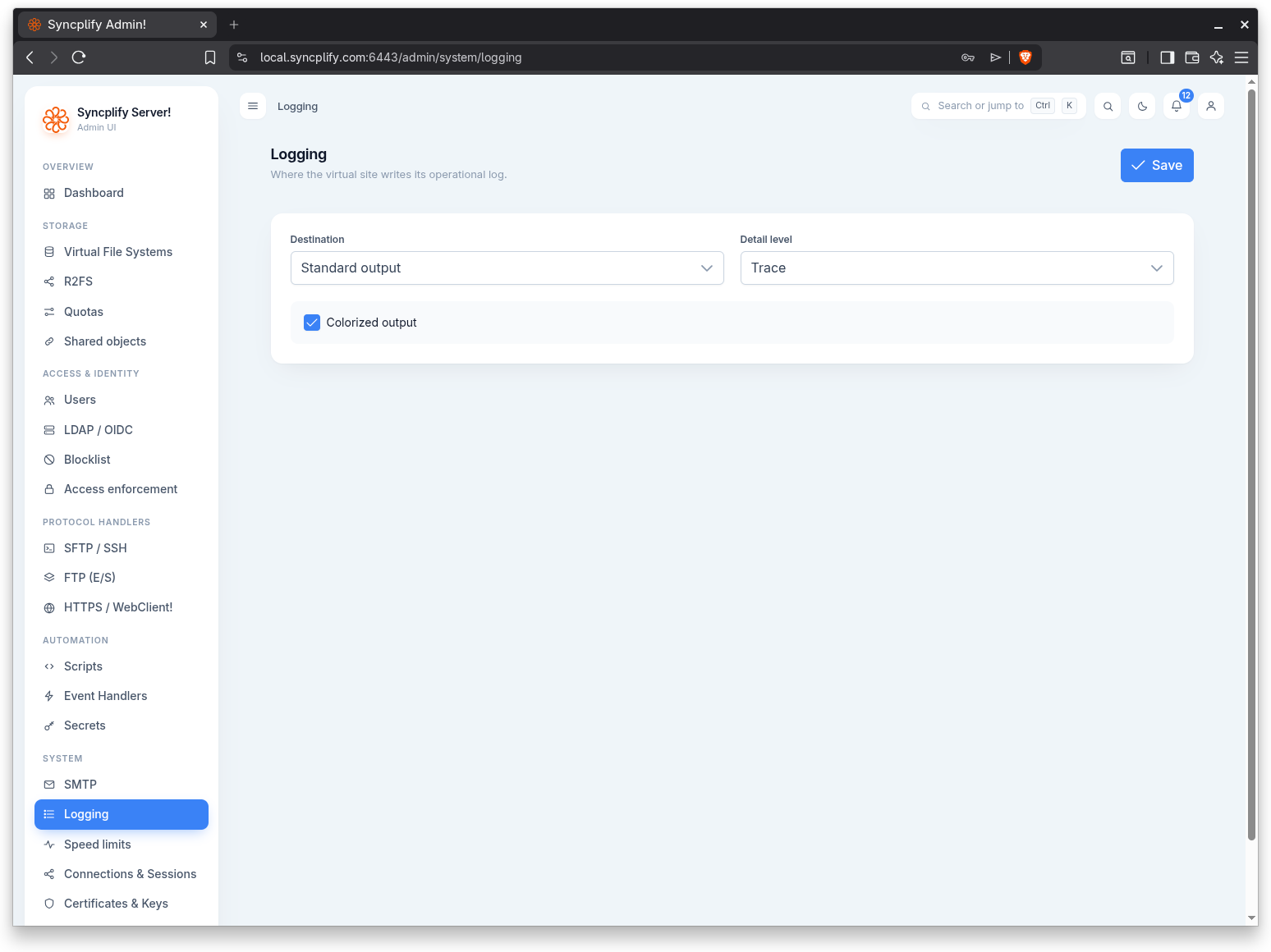

Standard output

When the destination is Standard output, a single option is shown.

Colorized output

When enabled, log lines written to standard output are colorized by severity for easier reading in a terminal.

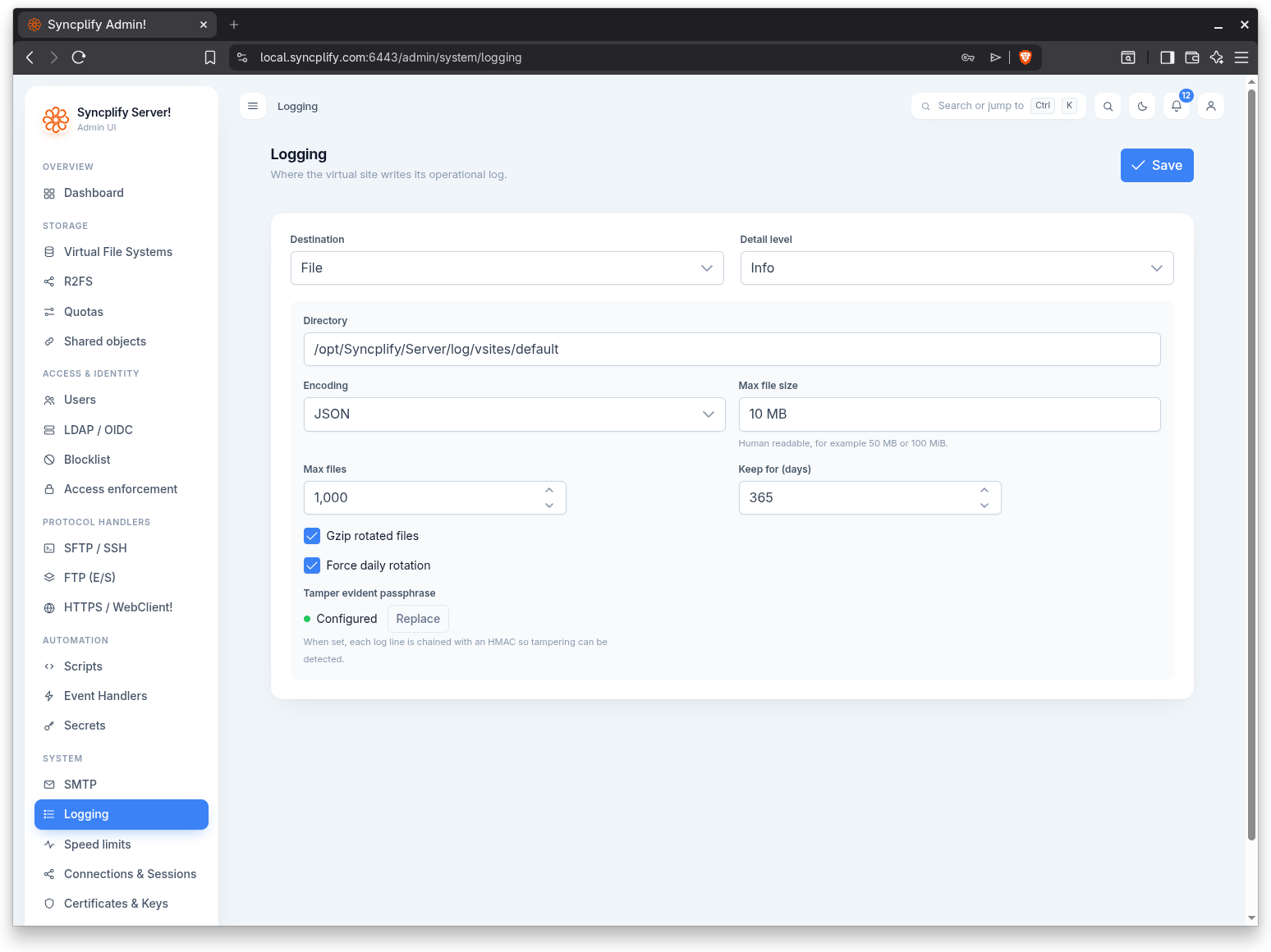

File

When the destination is File, the page shows the directory, rotation, and integrity options.

Directory

The directory where log files are created.

Encoding

The on disk encoding of the log records.

Max file size

The size at which the current log file is rotated. The value is human readable, for example 50 MB or 100 MiB.

Max files

The maximum number of rotated log files to keep. Older files beyond this count are removed.

Keep for (days)

The maximum age, in days, of rotated log files. Files older than this are removed.

Gzip rotated files

When enabled, rotated log files are compressed with gzip to save space.

Force daily rotation

When enabled, the log rotates once per day in addition to rotating when the maximum file size is reached.

Tamper evident passphrase

An optional passphrase that turns on tamper evident logging. When set, each log line is chained with an HMAC so that any later alteration of the file can be detected. The passphrase is stored as an encrypted secret; an existing value is not echoed back, so type a new one only when you want to change it, or clear it to disable the feature.

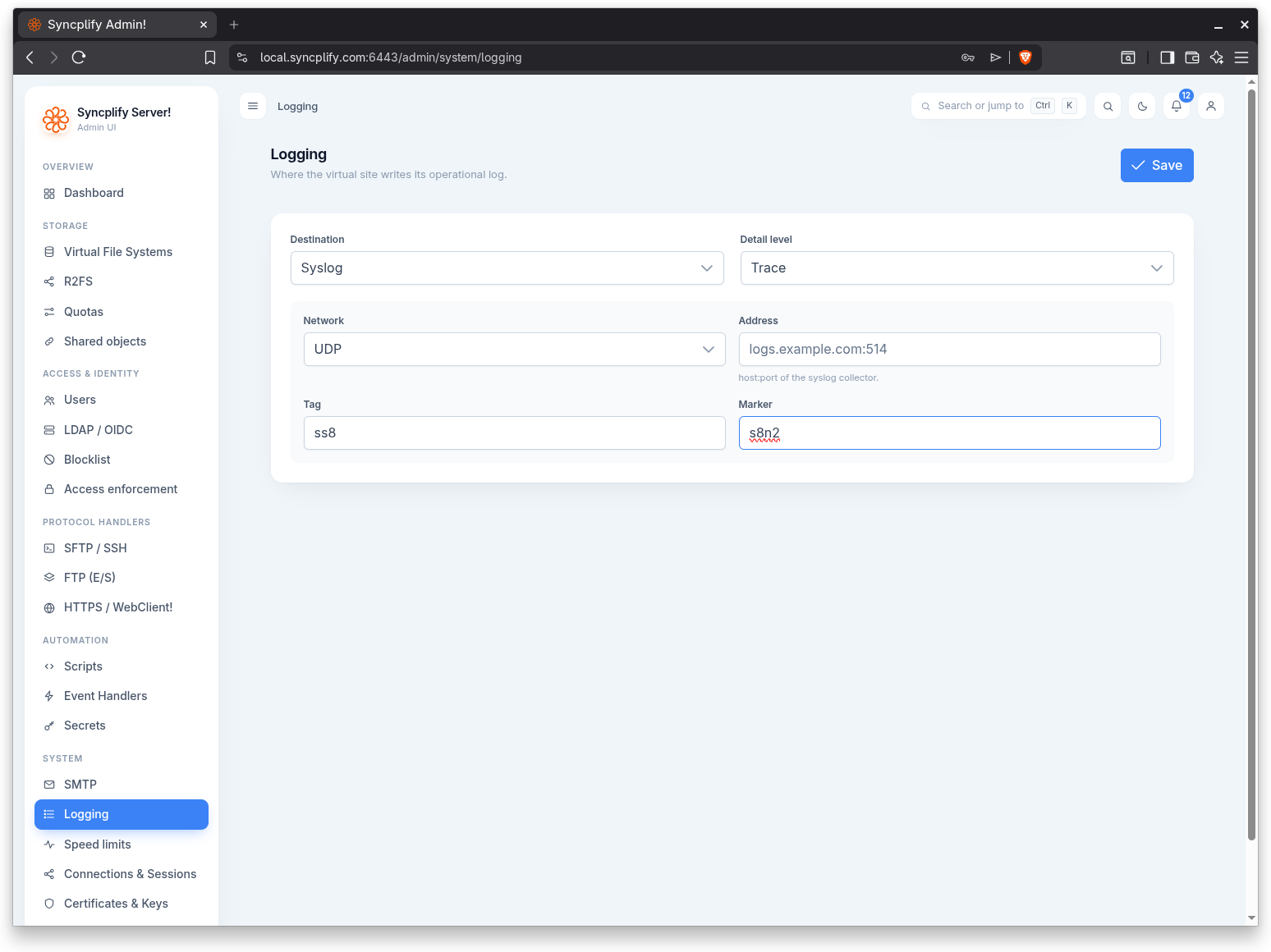

Syslog

When the destination is Syslog, the page shows the collector connection settings.

Network

The transport used to reach the syslog collector, for example UDP or TCP.

Address

The host:port of the syslog collector, for example logs.example.com:514.

Tag

The syslog tag applied to each record.

Marker

A marker string included with the forwarded records.

Saving

Use the Save button in the page header to persist the configuration. The tamper evident passphrase is sent only when you have typed a new one or explicitly cleared it.
